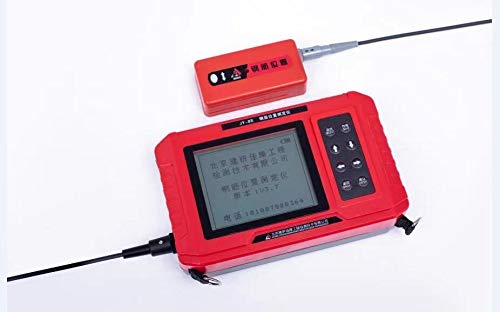

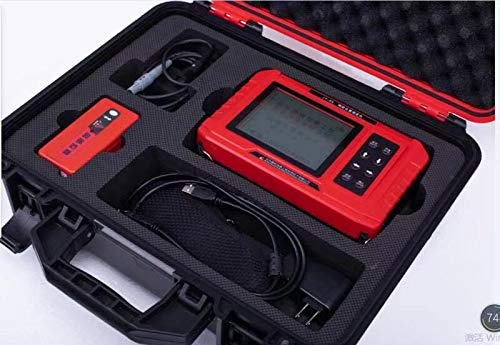

Description:JY-8S:Compact, lightweight JY-8S rebar locator using nondestructive techniques of electromagnetic induction reinforced concrete in order to detect and analyze the position. Can accurately locate reinforcing bars and steel mesh, can measure the thickness of the protective layer of concrete , and to determine the diameter of reinforcement bars.The Main Features:Detect and locate reinforcing bars and other metal construction equipmentMeasuring the thickness of the protective layer and the diameter of the concrete reinforcing barsCompact, easy to use indicator has a backlit displayUse voice alarm and signal to determine the reinforcement bar shows the location of the largestBy instrumental analysis software to transfer data to a PC 　Specification：After the removal of the concrete cover template for acceptancePositioning reinforced to avoid them when drillingProvide the necessary data ( location , cover, reinforcement diameter )Measure the depth of concrete coverQuality assurance in mass production of precast concrete elements .Display: LCD display with backlight display,Interface : RS232 interface or a USB adapterProtective layer thickness measurement ( nominal ) range:The first range ( nominal ) range : 6mm ~ 90 mm;The second range ( nominal ) range : 7mm ~ 180mmMemory Capacity: Can store data for 1000 objects, 256 measured values for one object maxData Transfer: 1* USB portAnalysis software: Based on Microsoft Windows, can export Detect Report in Microsoft Office Word format automatically.Operating Weight (including probe): 0.75kg(1.7lb)Weight including Carrying Case: 4.5kg(10lb)Operating Temperature Range: -10℃ to 40℃
